กล้องวงจรปิด ทรงกระบอก ความคมชัด 2 MP รุ่น IPC2322SB-HDZK-I0 มีไมค์ในตัว : Uniview (UNV)
฿0
การรับประกัน 3 ปี
บริการ ติดตั้งฟรี
IPC2322SB-HDZK-I0

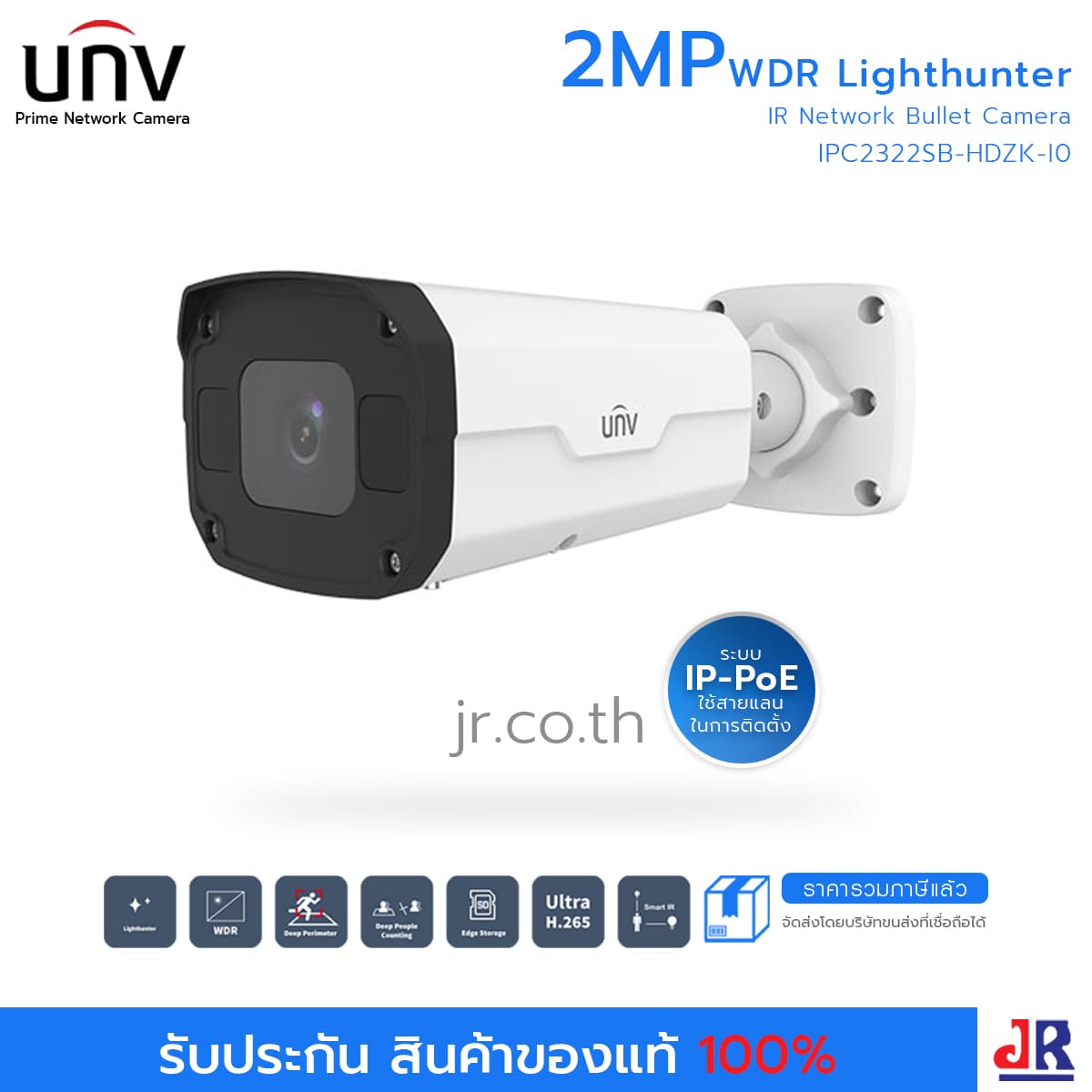

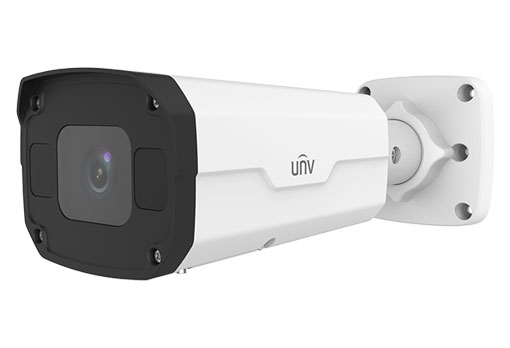

2MP WDR Lighthunter IR Network Bullet Camera
High quality image with 2MP,1/2.8’’ CMOS sensor
1920*1080@60fps in the main stream, deliver detailed live while 60fps making it smooth and closer to the real image
Ultra 265, H.265, H.264, MJPEG
5X optical zoom allows for closer viewing of subjects
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
Lighthunter product technology ensures ultra-high image quality in low illumination environment
Up to 120 dB Optical WDR (Wide Dynamic Range)
DC12V or PoE (IEEE 802.3af) power supply
Wide voltage range of ±25% in DC
Audio 1 in and 1 out, Alarm 1 in and 1 out
รายละเอียดสินค้า
คุณลักษณะสินค้า
| IPC2322SB-HDZK-I0 | |||||
| Camera | |||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||||
| Min. Illumination | Colour:0.001 lux (F1.2, AGC ON) 0 lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| WDR | 120dB | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens type | [email protected], AF automatic focusing and motorized zoom lens | ||||
| Iris | Fixed | ||||
| Field of View (H) | 98.2°~30.6° | ||||
| Field of View (V) | 53.3°~17.3° | ||||
| Field of View (D) | 127.7°~37.6° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.7 | 70.9(232.5ft) | 28.4(93.0ft) | 14.2(46.5ft) | 7.1(23.3ft) | |
| 13.5 | 247.5(812.0ft) | 99.0(324.8ft) | 49.5(162.4ft) | 24.8(81.2ft) | |
| Illuminator | |||||
| IR Range | Up to 50m (164 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 1080P (1920*1080),Max 60fps; Sub Stream: 1080P (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| ROI | Up to 8 areas | ||||
| Video stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas per scene | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Intelligent | |||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||
| Events | |||||
| Basic Detection | Motion detection, Audio detection, Tampering alarm | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U, G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZLive EZview | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Interface | |||||
| Audio I/O | 1/1 | ||||
| Alarm I/O | 1/1 | ||||
| Video output | 1 BNC(For debugging) | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Certification | |||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | ||||
| General | |||||
| Power | DC12V(±25%), PoE(IEEE 802.3af) | ||||
| Power consumption: Max 8W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (L x W x H) | 245.0x86.0x85.0mm (9.6’’x3.4’’x3.4’’) | ||||
| Weight | 0.92kg(2.03lb) | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge protection | 6KV | ||||
| Reset button | N/A | ||||
