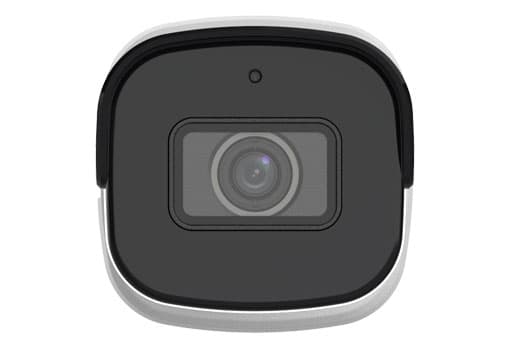

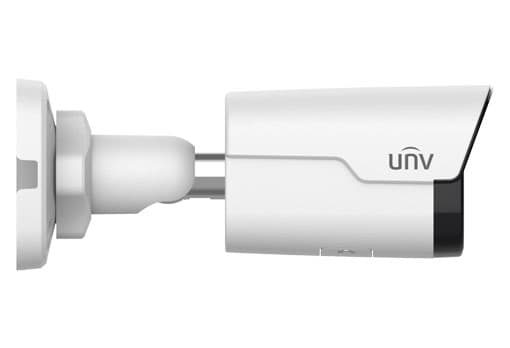

กล้องวงจรปิดภาพคมชัด 4 MP (2K) รุ่น IPC2124SS-ADF28(40)KM-I0 4MP LightHunter Intelligent Mini Fixed Bullet Network Camera : Uniview (UNV)
100%
฿0ปกติ฿1
การรับประกัน 3 ปี
บริการ ติดตั้งฟรี
IPC2124SS-ADF28(40)KM-I0
Optics
1/2.7’’, Powered by lighthunter
SmartIR, up to 50m (164 ft) IR distance
Up to 120 dB Optical WDR (Wide Dynamic Range)
Smart
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
2688*1520@30fps in the main stream
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Built-in MIC
DC12V or PoE power supply
Wide voltage range of ±25% in DC
Micro SD, up to 256 GB
IP67 ingress protection
รายละเอียดสินค้า
คุณลักษณะสินค้า
| IPC2124SS-ADF28KM-I0 | IPC2124SS-ADF40KM-I0 | ||||||
| Camera | |||||||
| Sensor | 1/2.7", 4.0 megapixel, progressive scan, CMOS | ||||||
| Lens | [email protected] | [email protected] | |||||
| Iris | Fixed aperture | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 63.0(206.7ft) | 25.2(82.7ft) | 12.6(41.3ft) | 6.3(20.7ft) | |||
| 4.0 | 90.0(295.3ft) | 36.0(118.1ft) | 18.0(59.1ft) | 9.0(29.5ft) | |||
| Field of View (H) | 95.8° | 78.9° | |||||
| Field of View (V) | 51.5° | 40.8° | |||||
| Field of View (D) | 124.5° | 97.0° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Min. Illumination | Colour:0.002lux (F1.6, AGC ON) 0 lux with IR | ||||||
| WDR | 120dB | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| S/N | >55dB | ||||||
| IR Range | Up to 50m (164 ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| Video | |||||||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | ||||||
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; 4MP(2560*1440),Max 30fps; 3MP(2304*1296),Max 30fps; 2MP(1920*1080),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| ROI | Supported | ||||||
| Video stream | Triple streams | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas(8 blacks/8 mosaics) | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Intelligent | |||||||
| Smart intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||
| Events | |||||||
| Exception Detection And Statistics | Object Removed, Object Left Behind | ||||||
| Basic Detection | Motion detection, Audio detection, Tampering alarm | ||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711U,G.711A | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||
| Network Storage | ANR,NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Client | EZStation Ezview EZLive | ||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
| Interface | |||||||
| Audio | Build-in Mic | ||||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | ||||||
| Certifications | |||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||
| General | |||||||
Power | DC12V(±25%), PoE(IEEE802.3af) | ||||||
| Power consumption: Max 5W | |||||||
| Dimensions (Ø x H) | Φ155.9x63.1x62.7mm(Φ6.1’’x2.5’’x2.5’’) | ||||||
| Net Weight | 0.4kg(0.88lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge protection | 2KV | ||||||
