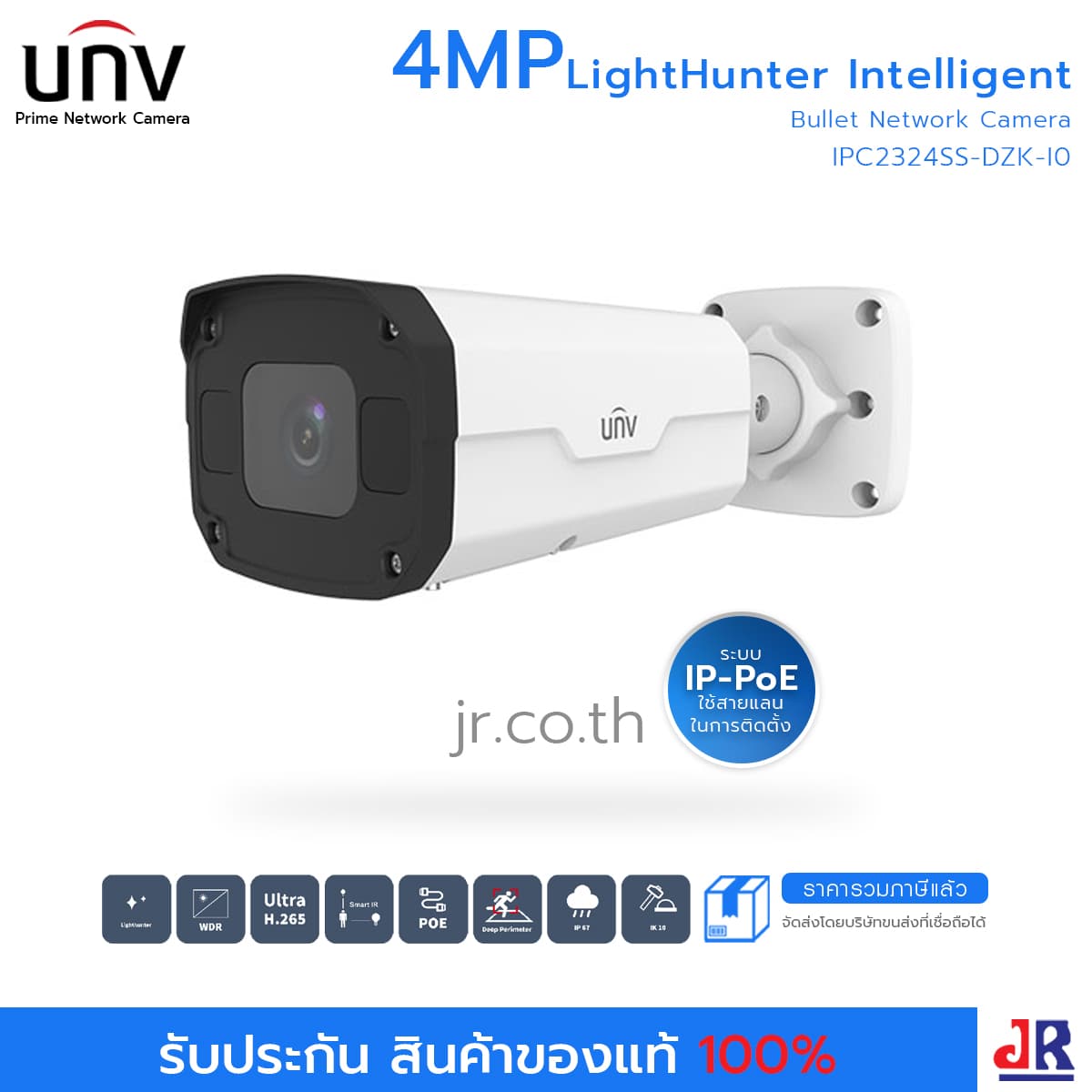

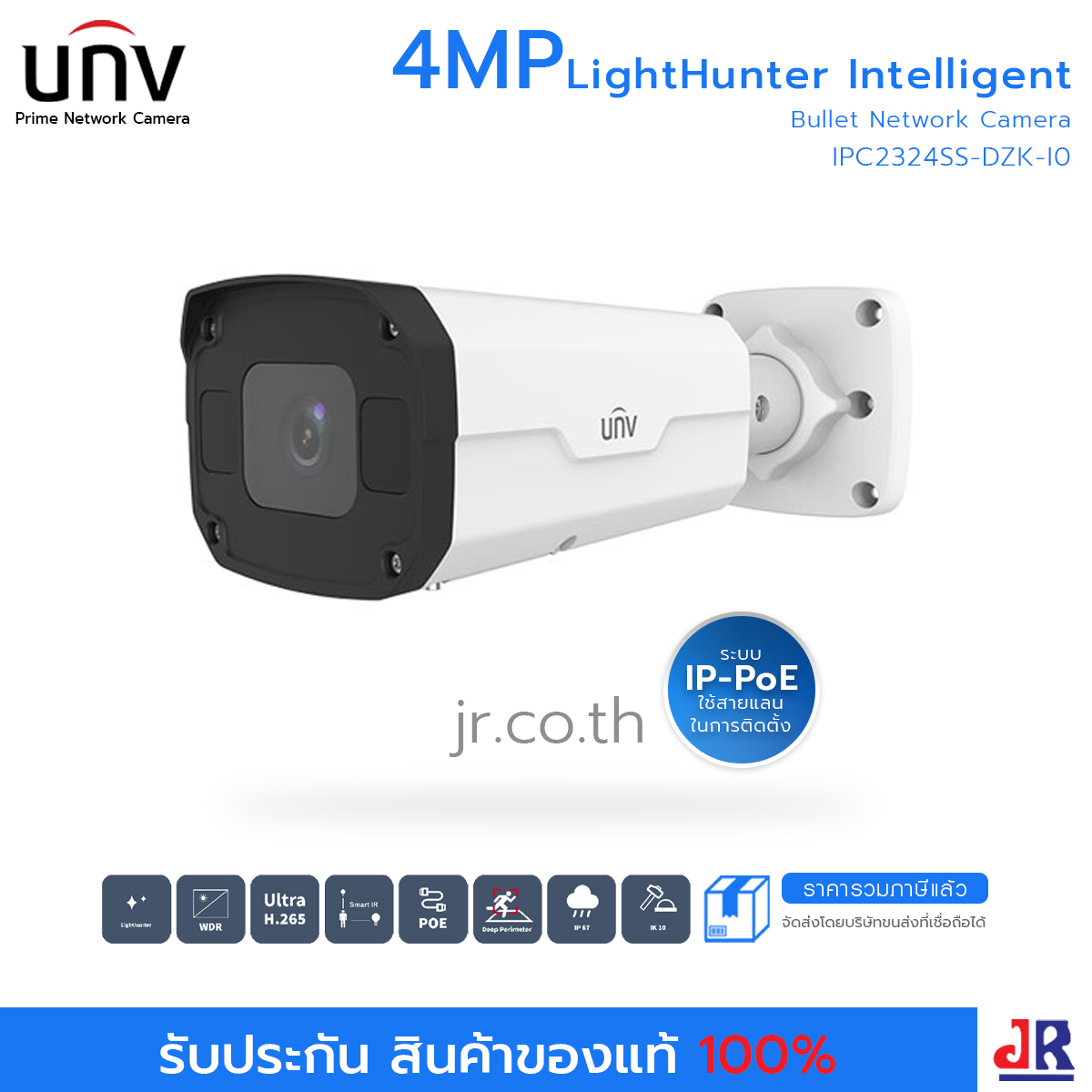

กล้องวงจรปิด ทรงกระบอก ความคมชัด 4MP รุ่น IPC2324SS-DZK-I0 : Uniview (UNV)
IPC2324SS-DZK-I0
1/2.7’’, Powered by lighthunter
SmartIR, up to 50m (164 ft) IR distance
Up to 120 dB Optical WDR (Wide Dynamic Range)
Perimeter Protection, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
Ultra 265, H.265, H.264, MJPEG
Triple streams
2688*1520@30fps in the main stream
ROI (Region of Interest)
ONVIF Conformance
DC12V or PoE power supply
Wide voltage range of ±25% in DC
Micro SD, up to 256 GB
Alarm 1 in and 1 out, Audio 1 in and 1 out
IP67 ingress protection
IK10 vandal resistant
รายละเอียดสินค้า
Optics
1/2.7’’, Powered by lighthunter
SmartIR, up to 50m (164 ft) IR distance
Up to 120 dB Optical WDR (Wide Dynamic Range)
Smart
Perimeter Protection, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
2688*1520@30fps in the main stream
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
DC12V or PoE power supply
Wide voltage range of ±25% in DC
Micro SD, up to 256 GB
Alarm 1 in and 1 out, Audio 1 in and 1 out
IP67 ingress protection
IK10 vandal resistant
คุณลักษณะสินค้า
| IPC2324SS-DZK-I0 | |||||
| Camera | |||||
| Sensor | 1/2.7", 4.0 megapixel, progressive scan, CMOS | ||||
| Lens | [email protected], AF automatic focusing and motorized zoom lens | ||||
| Iris | Auto aperture | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.7 | 70.9(232.5ft) | 28.4(93.0ft) | 14.2(46.5ft) | 7.1(23.3ft) | |
| 13.5 | 247.5(812.0ft) | 99.0(324.8ft) | 49.5(162.4ft) | 24.8(81.2ft) | |
| Angle of View (H) | 26.0°~92.0° | ||||
| Angle of View (V) | 15.0°~53.9° | ||||
| Angle of View (O) | 30.7°~119.6° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Min. Illumination | Colour:0.002lux (F1.2, AGC ON) 0 lux with IR | ||||
| WDR | 120dB | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| S/N | >55dB | ||||
| IR Range | Up to 50m (164 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| Video | |||||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | ||||
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; 4MP(2560*1440),Max 30fps; 3MP(2304*1296),Max 30fps; 2MP(1920*1080),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| ROI | Supported | ||||
| Video stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 8 areas(8 blacks/4 mosaics+4 blacks) | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Smart | |||||
| Smart intrusion Prevention | Support false alarm filtering，Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection ; Motion detection ; | ||||
| Recognition | Audio detection | ||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Two way audio | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | EZStation Ezview EZLive | ||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Interface | |||||
| Audio I/O | Audio cable | ||||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
| 1 output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 1/1 | ||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | ||||
| Certifications | |||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||
| General | |||||
Power | DC12V(±25%), PoE(IEEE802.3af) | ||||
| Power consumption: Max 9.5W | |||||
| Support overcurrent protection and input short circuit protection | |||||
| Dimensions (Ø x H) | Φ245.0x86.0x72.0mm(Φ9.6’’x3.4’’x2.8’’) | ||||
| Net Weight | 0.98kg(2.16lb) | ||||
| Material | Metal | ||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F）, Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge protection | 6KV | ||||
| Vandal Resistant | IK10 | ||||
| Ingress Protection | IP67 | ||||
