กล้องวงจรปิด ทรงกระบอก ความคมชัด 4MP (2K) รุ่น IPC2K24SE-ADF40KMC-WL-I0 : Uniview (UNV)
IPC2K24SE-ADF40KMC-WL-I0
• High quality image with 4MP, 1/2.9"CMOS sensor
• 4MP (3840*1080)@25fps（Human Body Detection off）; 4MP (3840*1080)@20fps（Human Body Detection on）
• The double lens splicing technology is adopted to realize the horizontal viewing angle of 160.00°±10°
• Ultra 265, H.265, H.264, MJPEG
• Support Human Body Detection
• Colorhunter technology ensures 24-hour full-color images
• Alarm:1 in/1 out
• Audio: 1 in/1 out
• Built-in speaker and dual mics
• Support 256 GB micro SD card
• 12V DC/PoE power supply
รายละเอียดสินค้า

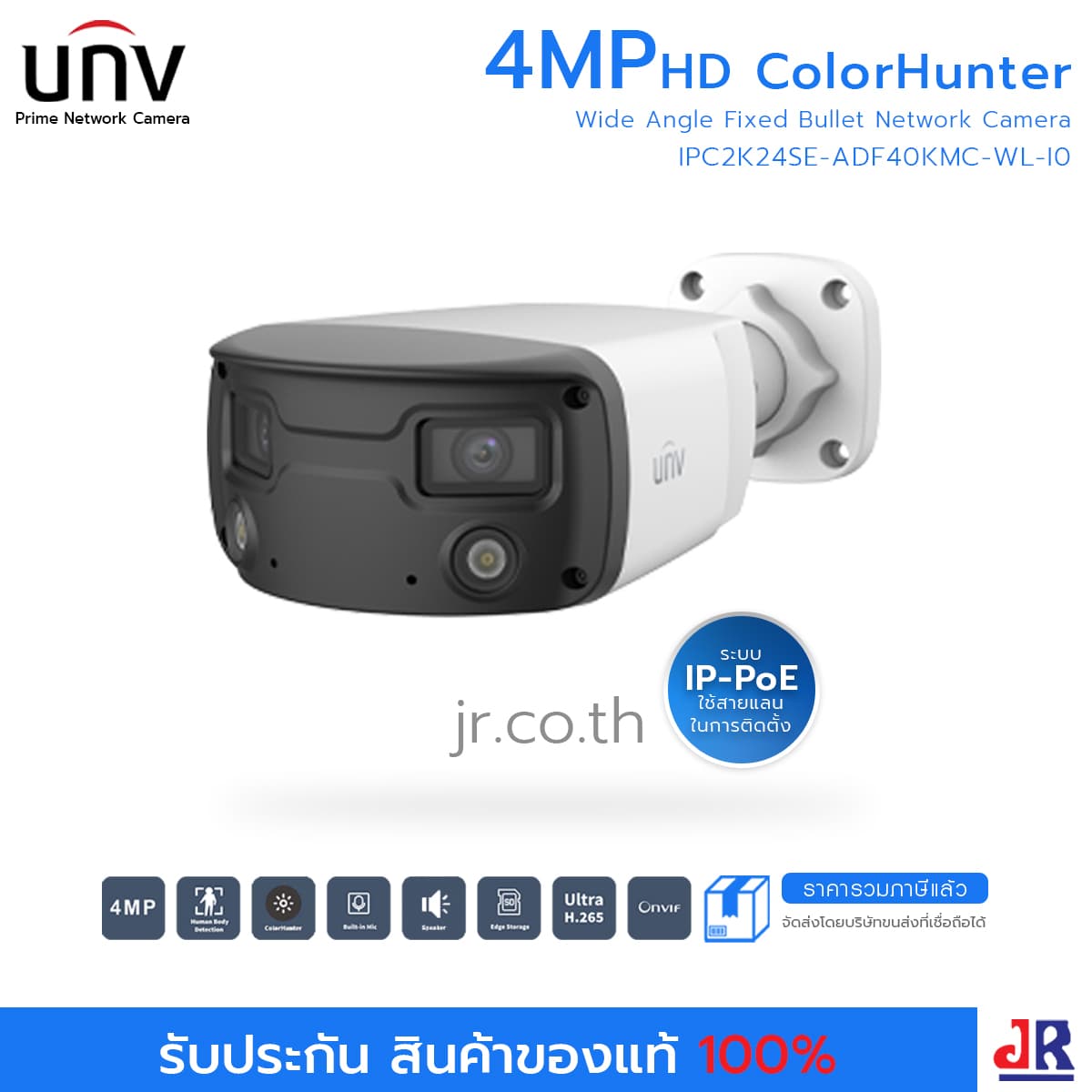

4MP HD ColorHunter Wide Angle Fixed Bullet Network Camera
• High quality image with 4MP, 1/2.9"CMOS sensor
• 4MP (3840*1080)@25fps（Human Body Detection off）; 4MP (3840*1080)@20fps（Human Body Detection on）
• The double lens splicing technology is adopted to realize the horizontal viewing angle of 160.00°±10°
• Ultra 265, H.265, H.264, MJPEG
• Support Human Body Detection
• Colorhunter technology ensures 24-hour full-color images
• Alarm:1 in/1 out
• Audio: 1 in/1 out
• Built-in speaker and dual mics
• Support 256 GB micro SD card
• 12V DC/PoE power supply
คุณลักษณะสินค้า
| IPC2K24SE-ADF40KMC-WL-I0 | |||||||
| Camera | |||||||
| Sensor | 1/2.9″, 4.0 megapixel, progressive scan, CMOS | ||||||
| Minimum Illumination | Colour: 0.0005 lux (F1.0, AGC ON) | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| WDR | DWDR | ||||||
| S/N | >56dB | ||||||
| Lens | |||||||
| Lens | 2 * [email protected] | ||||||
| Iris | Fixed | ||||||
| Field of View (H) | 160.00°±10° | ||||||
| Field of View (V) | 43.22° | ||||||
| Field of View (D) | 180.13°±10° | ||||||
| DORI | |||||||
| DORI Distance | Lens (mm) | Detect（m） | Observe（m） | Recognize（m） | Identify（m） | ||
| 4.0 | 64.3 | 25.7 | 12.9 | 6.4 | |||
| Illuminator | |||||||
| LED Distance | Up to 30m (98ft) | ||||||
| LEDs Number | 2 | ||||||
| LED On/Off Control | Auto/Manual | ||||||
| Video | |||||||
| Video Compression | Ultra265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 4MP (3840*1080), Max 25fps（Human Body Detection off） Sub Stream: 1920*540, Max 25fps | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| U-code | Support | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Video Stream | Double streams | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart Illumination | Support | ||||||
| Flip | N/A | ||||||
| Dewarping | N/A | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Defog | Digital Defog | ||||||
| Events | |||||||
| Basic Detection | Human Body Detection ,motion detection, tampering alarm, audio detection | ||||||
| General Function | Watermark, IP address filtering, Alarm input, Alarm output, access policy, ARP protection, RTSP authentication, user authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Audio Bitrate | 64 Kbps | ||||||
| Two-way audio | Support | ||||||
| Suppression | Support | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR, NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||
| Client | EZStation EZView EZLive | ||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||||
| Interface | |||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| RS485 | N/A | ||||||
| Built-in Mic | Built-in two mics | ||||||
| Built-in Speaker | Support | ||||||
| WIFI | N/A | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | N/A | ||||||
| Certifications | |||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 6.5W | |||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||
| Dimensions (L × W × H) | 273× 130 × 76mm (10.7” × 5.1” × 3.0”) | ||||||
| Weight | 0.95kg (2.09lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| surge protection | 4KV | ||||||
| Reset Button | Support | ||||||
