กล้องวงจรปิด ทรงโดม ความคมชัด 5MP รุ่น IPC3605SB-ADF16KM-I0 : Uniview (UNV)

100%
฿0
ปกติ฿1
02-691-8228

สั่งซื้อสินค้า

การรับประกัน 3 ปี
บริการ ติดตั้งฟรี

IPC3605SB-ADF16KM-I0

• High quality image with 5MP, 1/2.7"CMOS· sensor
• 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps; 3MP(2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Wide Angle technology realize the horizontal viewing angle of 180°
• The dewarp level can be configured in the range of 1-9
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• 120dB true WDR technology enables clear image in strong light scene
• Built-in Mic
• Smart IR, up to 20m (66ft) IR distance
• Supports 256 GB Micro SD card
• IP67 protection
• IK10 vandal resistant

รายละเอียดสินค้า

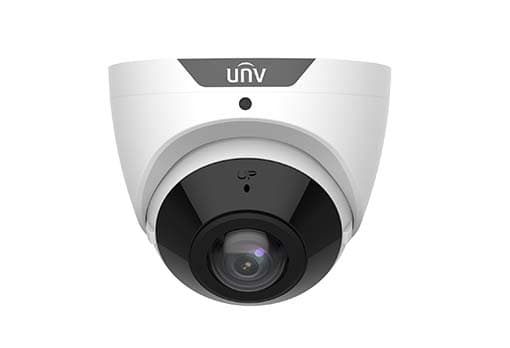

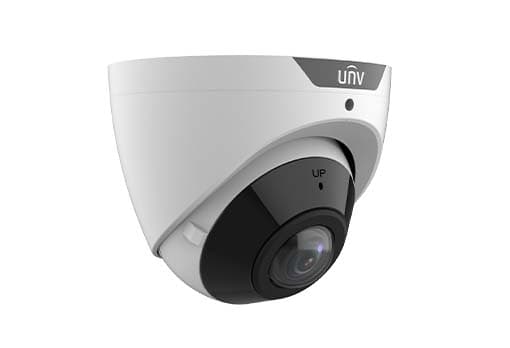

5MP HD Wide Angle Intelligent IR Fixed Eyeball Network Camera

• High quality image with 5MP, 1/2.7"CMOS· sensor
• 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps; 3MP(2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Wide Angle technology realize the horizontal viewing angle of 180°
• The dewarp level can be configured in the range of 1-9
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• 120dB true WDR technology enables clear image in strong light scene
• Built-in Mic
• Smart IR, up to 20m (66ft) IR distance
• Supports 256 GB Micro SD card
• IP67 protection
• IK10 vandal resistant

คุณลักษณะสินค้า

 IPC3605SB-ADF16KM-I0
Camera
Sensor1/2.7", 5.0 megapixel, progressive scan, CMOS
Minimum IlluminationColour: 0.01lux (F2.0, AGC ON)
0 lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 75°Rotate: 0° ~ 360°
WDR120dB
S/N>56dB
Lens
Lens[email protected]
IrisFixed
Field of View (H)180°
Field of View (V)100°
Field of View (O)180°
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
1.6837.8(124.0ft)15.1(49.6ft)7.6(24.8ft)3.8(12.4ft)
Illuminator
IR RangeUp to 20m (66ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main profile, High profile
Frame RateMain Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~10 Mbps
U-codeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video StreamTriple streams
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal/ Flip Vertical/ Flip Horizontal/180°
DewarpingSupport
HLCSupport
BLCSupport
DefogDigital Defog
Intelligent
Smart intrusion preventionSupport false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Events
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way audioN/A
SuppressionSupport
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4,IPv6, IGMP,, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API,SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 RJ45 10M/100M Base-TX Ethernet
Video OutputN/A
Certifications
EMCCE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
ProtectionIP67 (IEC 60529)
IK10 (IEC 62262)
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Power InterfaceØ 5.5mm coaxial power plug
Dimensions (Ø x H)Φ111 x 93mm (Φ4.4”x 3.7”)
Weight0.48kg (1.06lb)
MaterialMetal
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection4KV
Reset ButtonSupport

ดาวน์โหลดข้อมูลสินค้า

UNV 【Datasheet】IPC3605SB-ADF16KM-I0 5MP HD Wide Angle Intelligent IR Fixed Eyeball Network Camera datasheet V1.1-EN.pdf
