กล้องวงจรปิด ทรงกระบอก ความคมชัด 5MP รุ่น IPC815SB-ADF14K-I0 : Uniview (UNV)

100%
฿0
ปกติ฿1
02-691-8228

สั่งซื้อสินค้า

การรับประกัน 3 ปี
บริการ ติดตั้งฟรี

IPC815SB-ADF14K-I0

• High quality image with 5MP, 1/2.8"CMOS sensor
• 5MP (2592*1944):@ 30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Built-in 2 Mic, Supports the detection of sounds over longer distances
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 10m (33ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP66 protection
• Support PoE power supply

รายละเอียดสินค้า

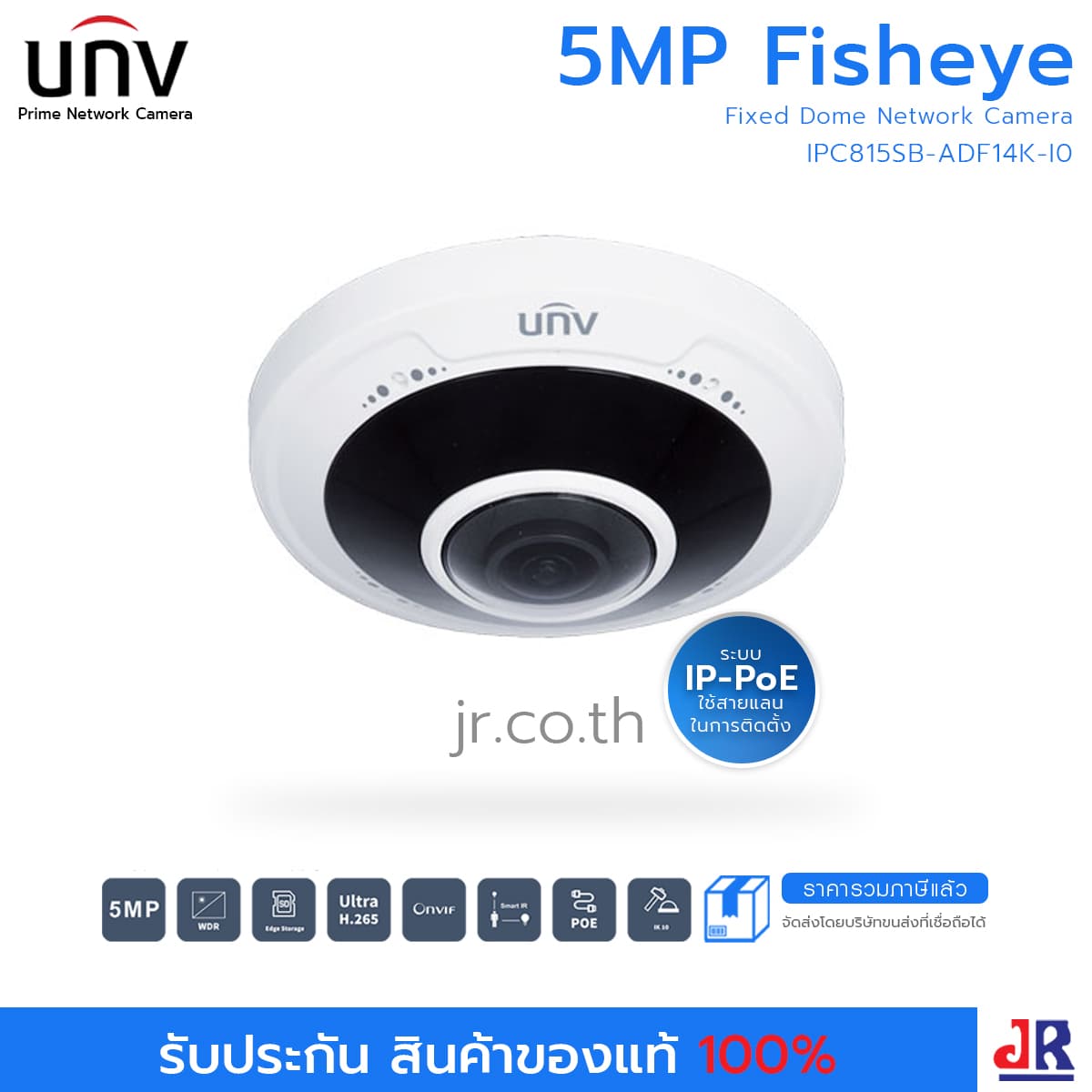

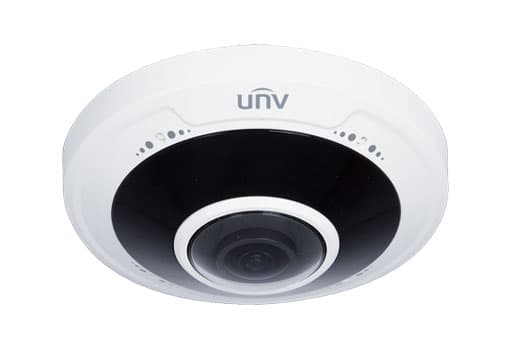

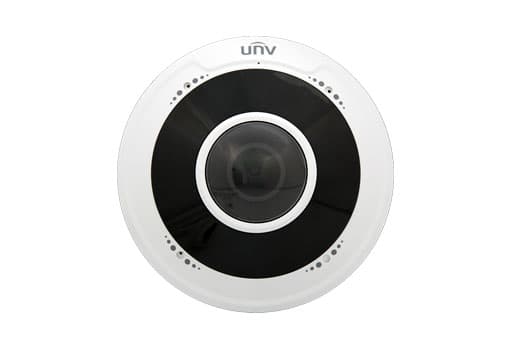

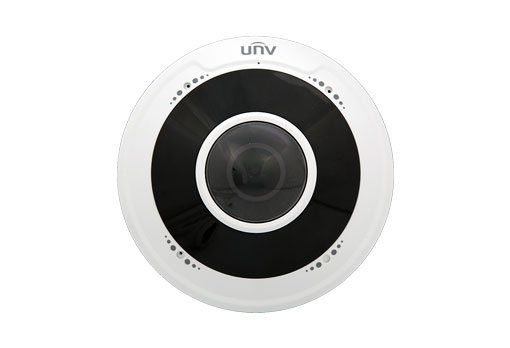

5MP Fisheye Fixed Dome Network Camera

• High quality image with 5MP, 1/2.8"CMOS sensor
• 5MP (2592*1944):@ 30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Built-in 2 Mic, Supports the detection of sounds over longer distances
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 10m (33ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP66 protection
• Support PoE power supply

คุณลักษณะสินค้า

 IPC815SB-ADF14K-I0
Camera
Image sensor1/2.8", progressive scan, 5.0 megapixel, CMOS
Minimum IlluminationColour: 0.01 lux (F2.0, AGC ON)
0 lux with IR
Day/NightIR-cut filter for day & night function
ShutterAuto/Manual, shutter time: 1~1/100000 s
WDR120dB
S/N>55dB
Lens
Lens type[email protected]
IrisFixed
Angle of View360°
DORI
DORI DistanceLensDetect (m)Observe (m)Recognize (m)Identify (m)
1.4mm31.512.66.33.2
Illuminator
IR RangeUP to 10m (33ft)
wavelength850nm
IR On/Off ControlAuto/Manual
Video
CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 5MP (2592*1944): Max.30fps;
Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
U-codeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video StreamTriple streams
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/ Flip Horizontal/180°
DewarpingN/A
HLCN/A
BLCSupport
DefogDigital Defog
Events
Statistical Analysisheat map
Basic DetectionMotion detection, tampering alarm, audio detection
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Audio Bitrate64 Kbps
Two-way audioSupported
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API,SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Live View Display
Mount TypeSupport table, wall, and ceiling
Decoding ModeSupport software decoding
Display Mode11 display modes in total
Software decoding:
Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ
Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ
Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ
Interface
Audio I/OInput: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O1/1
RS485N/A
Built-in MicSupported 2
Built-in SpeakerN/A
WIFIN/A
Network1 * RJ45 10M/100M Base-TX Auto-adaptive Ethernet
Video OutputN/A
Certifications
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General
PowerDC12V±25%,PoE (IEEE 802.3af)
Power consumption: Max. 8.5W
Power InterfaceØ 5.5mm coaxial power plug
Dimensions (Φ × H)Φ125 × 43.7 mm (Φ4.9" × 1.7")
Weight0.36kg (0.79lb)
MaterialMetal + Plastic
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection4KV
Reset ButtonSupported

ดาวน์โหลดข้อมูลสินค้า

UNV 【Datasheet】IPC815SB-ADF14K-I0 5MP Fisheye Fixed Dome Network Camera datasheet V1.0-EN.pdf
