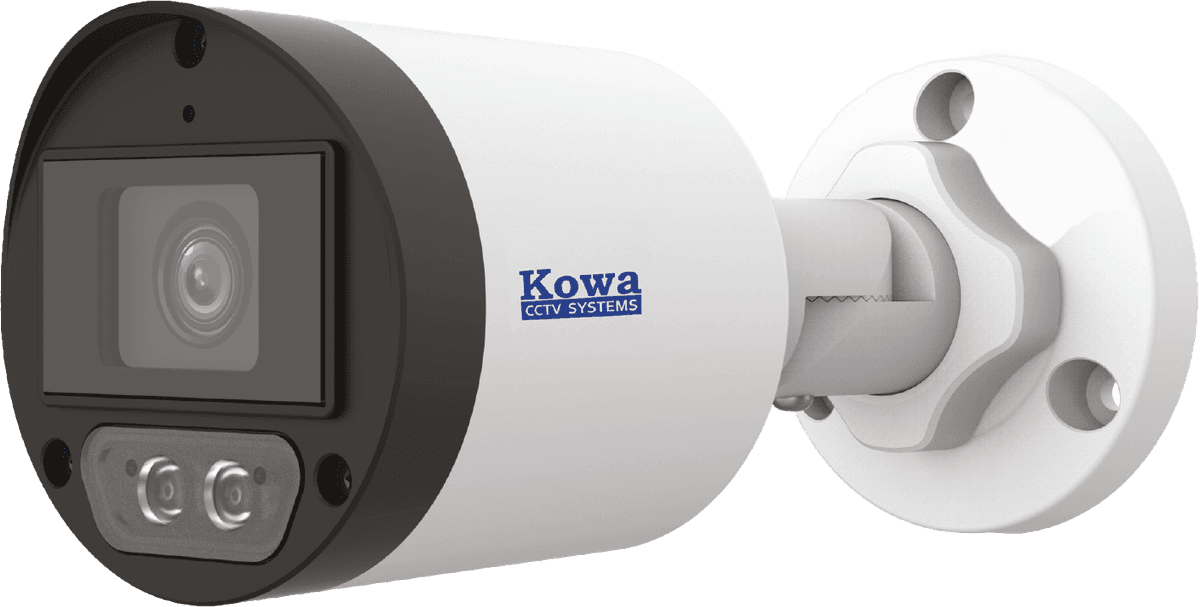

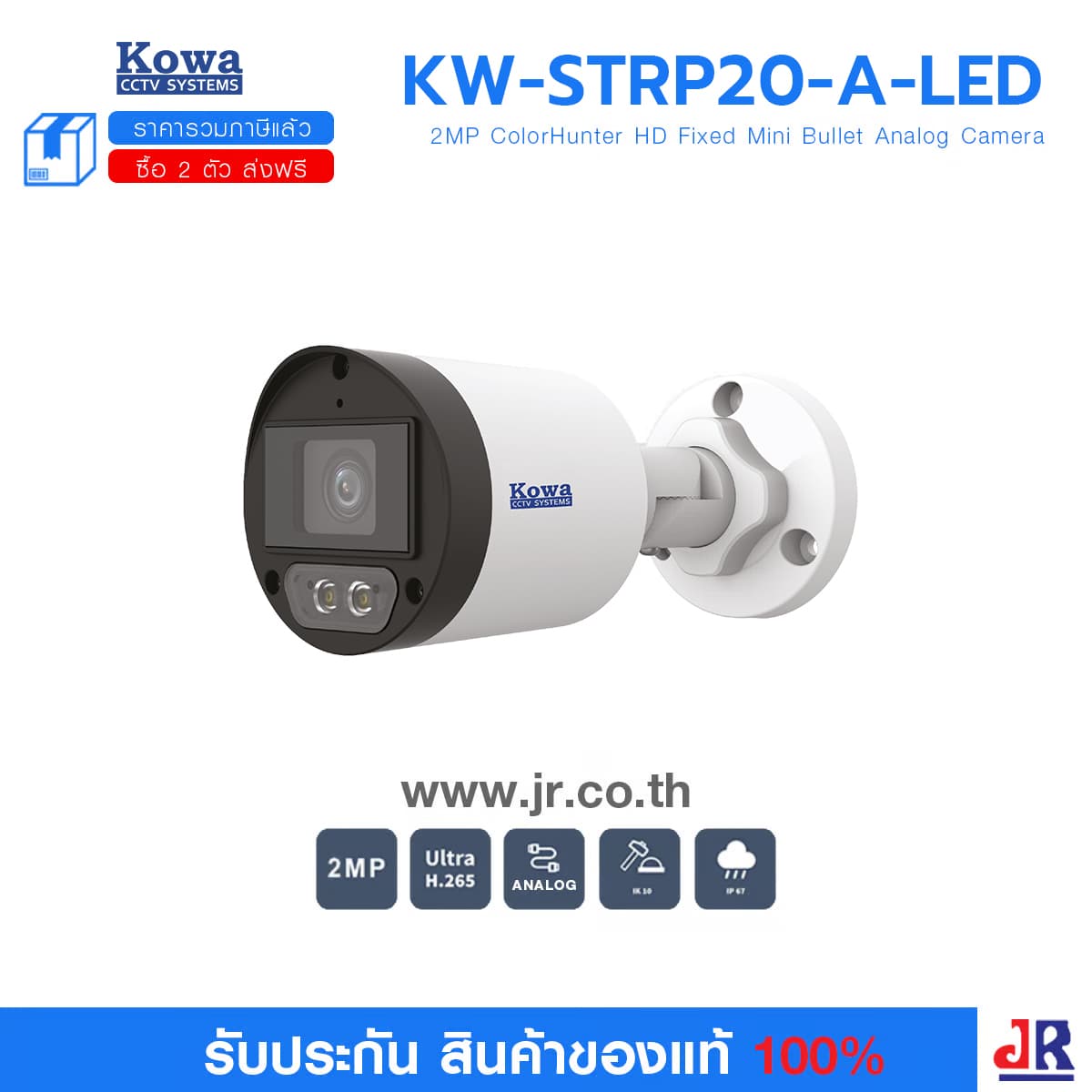

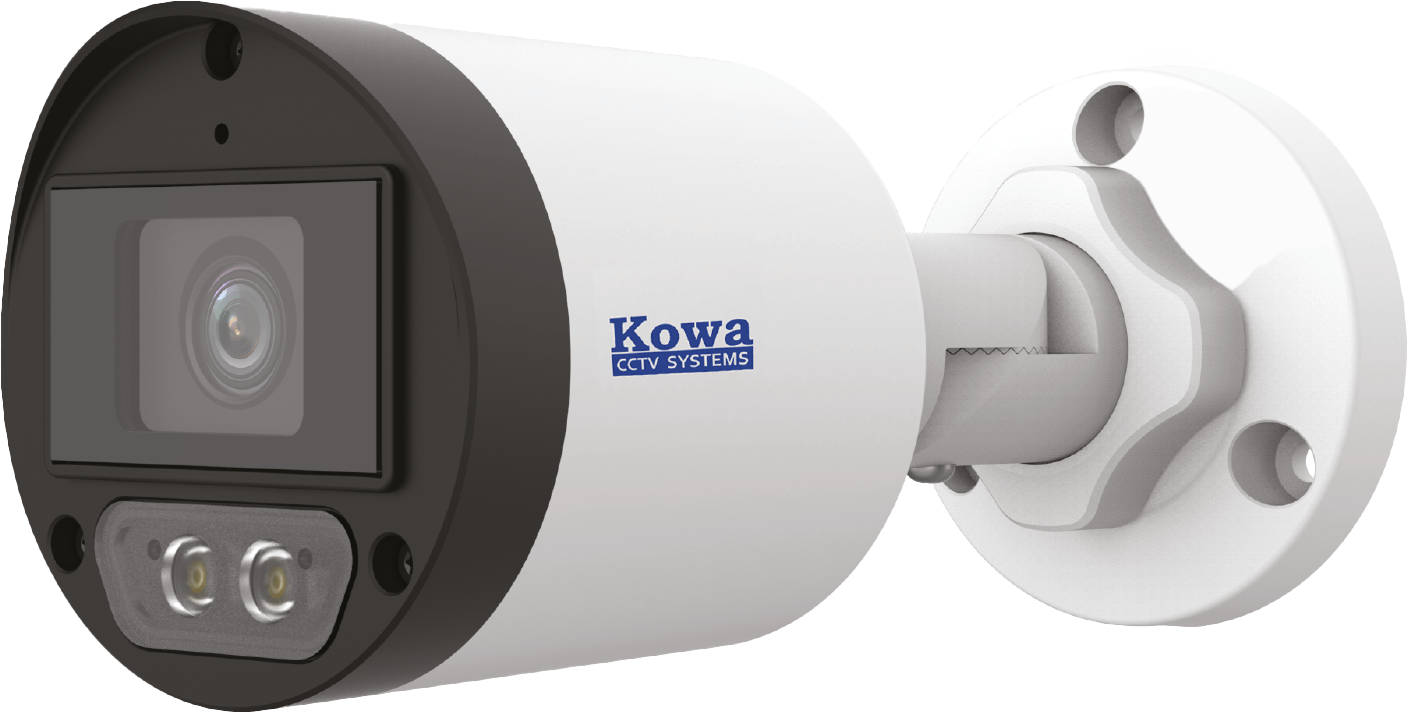

KW-STRP20-A-LED กล้องวงจรปิด ทรงกระบอก ความคมชัด 2MP : Uniview (UNV)
KW-STRP20-A-LED
• 2MP high quality imaging
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Supports digital defog
• Metal front face and housing
รายละเอียดสินค้า
• 2MP high quality imaging
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Supports digital defog
• Metal front face and housing
คุณลักษณะสินค้า
| Mod | KW-STRP20-A-LED | UAC-B122-AF40M-W |
| Sensor | ||
| Pixel | 2MP | |
| Size | 1/2.9" | |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (white light on) | |
| Lens | ||
| Lens | 2.8mm | 4.0mm |
| Lens mount | M12 | |
| Angle of view | H: 101.5° V: 56.9° D: 117.4° | H: 83.8° V: 42.7° D: 100.1° |
| Illuminator | ||
| Illuminator | Two white-light illuminators | |
| Illumination distance | 40m | |
| Lifetime | ≥60,000 hours | |
| Video | ||
| Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) | |
| Frame rate | TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC | |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s | |
| Image | ||
| Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
| Day/Night | 24/7 color images | |
| Digital noise reduction | 2D/3D | |
| White balance | Two modes: Auto (default), Manual | |
| WDR | DWDR | |
| Flip | Supports 180° horizontal flip, 180° vertical flip | |
| Defog | Digital Defog | |
| Audio | ||
| Microphone | Built-in Mic | |
| Camera audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps | |
| Interface | ||
| Power | 5.5mm power interface | |
| Video output | BNC, supports TVI/AHD/CVI/CVBS | |
| Operating environment | ||
| Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Humidity | ≤95% (RH, non-condensing) | |
| Surge protection | 4kV | |
| Ingress protection | IP67 | |
| General | ||
| Power | DC 12V (±25%), with reverse polarity protection and surge protection, Max 3.12W | |
| Mount | 3D bracket supplied, surface mount(default), optional junction box | |
| Dimensions | 157.4mm*66.5mm*66.5mm (L*W*H) | |
| Material | Metal | |
| Weight | 279g (0.62lb) | |
| Certification | CB, CE, FCC, UL | |
